Hybrid Precast Column Connection

The MOMENT Hybrid Precast Connection is a construction method that combines the use of MOMENT Precast Shoes with MOMENT Grout Couplers to connect precast elements, such as precast column connection and elevator shaft connection.

Using these two products in combination offers many advantages over other build techniques, including substantial savings in cost and time, and improvements in site safety.

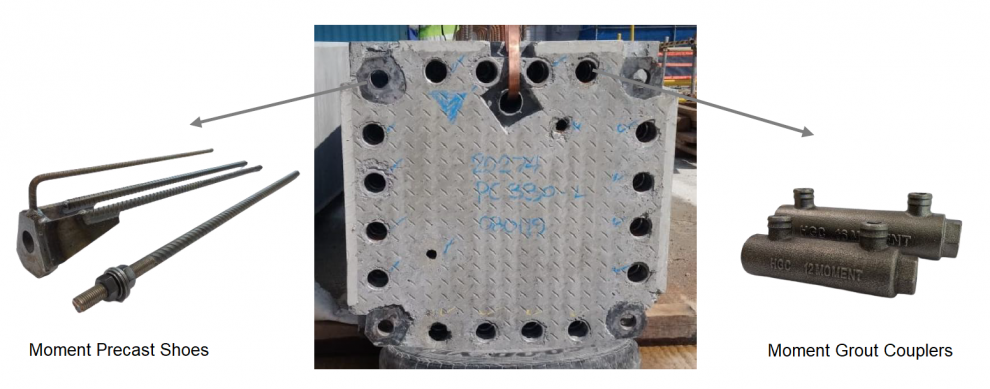

MOMENT Precast Shoes

The bolted Precast Shoe connection with its unique ‘dry joint’ feature, makes the connection easier to be adjusted and immediately load bearing so that bracing is not required which results in less labor at site.

MOMENT Half and Full Grout Couplers

Grout Couplers offer shorter development lengths (compared to traditional grout tubes), reducing the installation time in the precast factory by reducing the amount of confinement steel and enabling connections in much thinner elements.



Benefits of MOMENT Hybrid Precast Connection

• Cost savings over other similar jointing methods
• Quick installation in the precast yard and on site
• Immediate load bearing before grouting
• No propping required on site
• Improved site safety and access
• Resists seismic loads

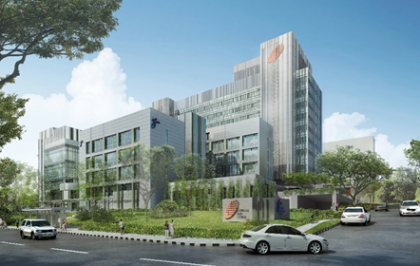

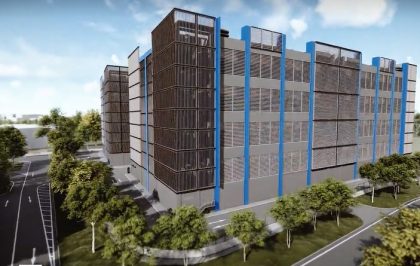

Our Project Reference

To improve our clients’ productivity on site, MOMENT Hybrid Precast Connections have been applied in a few prominent projects in Singapore.
